TL2500

ADD:North Nanliu Street,Shigao Industrial Zone,Taian City,Shandong China
  • TEL:+86 538 6713130
  • FAX:+86 538 6271673
Product Details


TL2500 telescopic wheel loader is particularly ideal for those who need more lift height. In addition to functionality, a high level of working comfort and excellent safety standards, these machines have a telescopic arm that provides considerably greater lift height and coverage in comparison to normal wheel loaders with load arms. The basic virtues, such as manoeuvrability, stability and lifting force, that characterize the articulated wheel loader, also apply to a telescopic wheel loader - which makes them so successful.

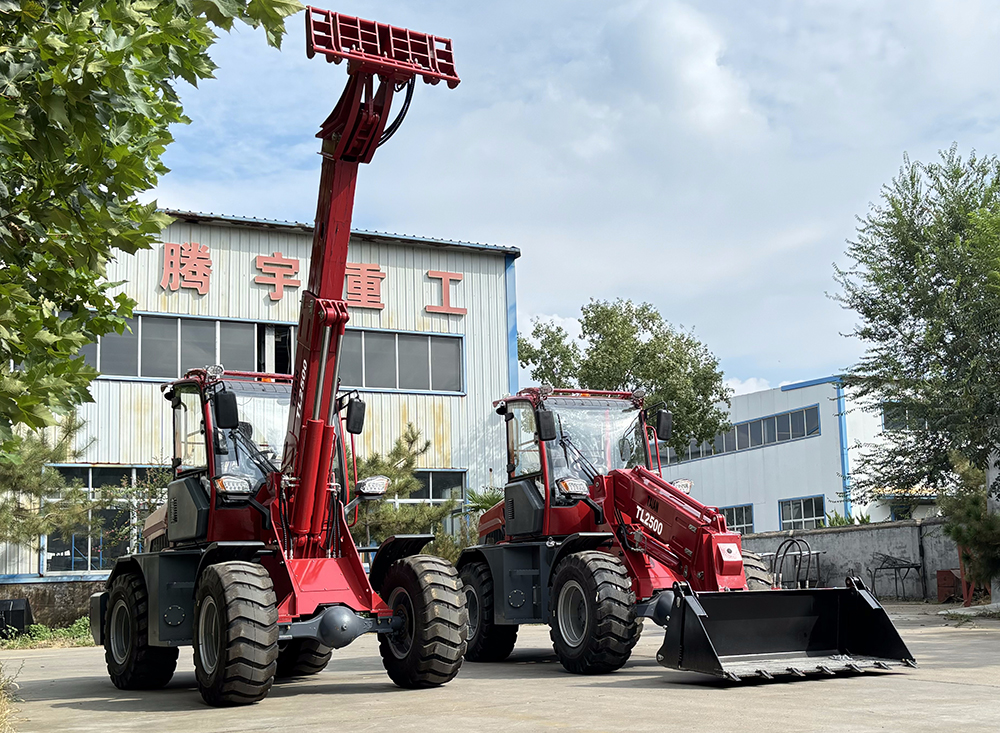

TL2500 Telescopic Wheel Loader-For all those who want to go up

1.Max. Loading Capacity 2500kgs-2800kgs;

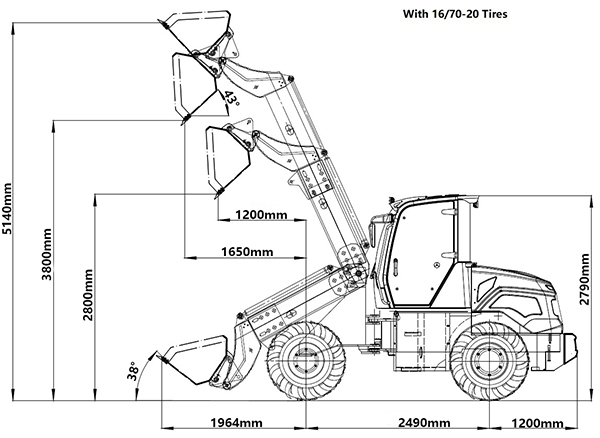

2.Max. Lifting Height:4650mm;

3.Drive speed as high as 20km/h, or Max. 32km/h with optional four speed gear shift ;

4.Telescopic boom as standard;

5.Optional with Bobcat or Euro VIII Quick Hitch;

6.Four Wheel Disk Brake, With hub reducer;

7.A/C System available;

8.ROPS/FOPS cabin.

Engine Options:Basic version of TL1500 is equipped with Perkins or Yanmar engine. Also optional with Kohler with EPA Tier 4 engines

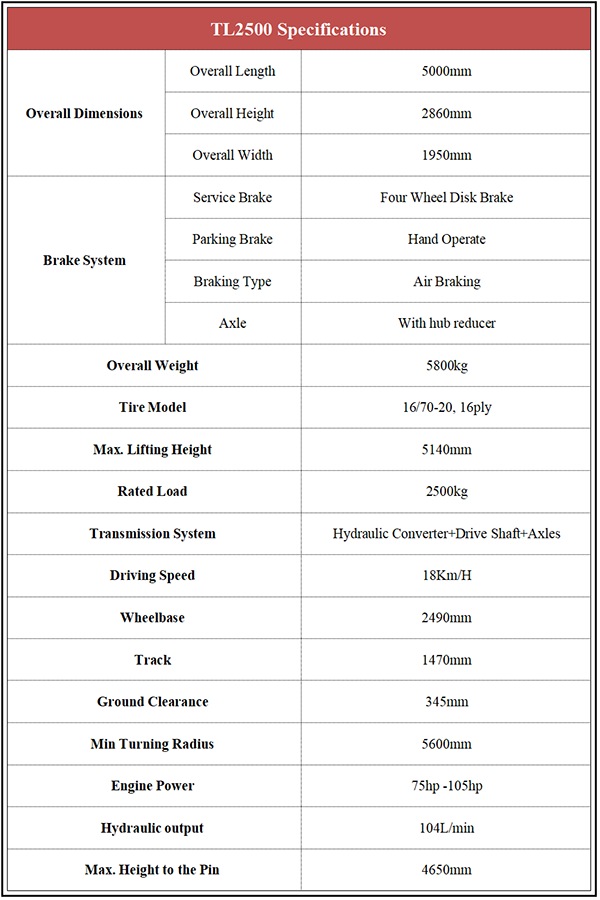

PAREMETER:Technical Specifications - TL2500.docx
