Product Details

TAIAN MS500 Mini Track Loader gives you the power to tackle big jobs in close quarters with impressive traction andlifting abilities. It turns quickly in its tracks, and treads lightly over soft ground and lawns. With a big range of attachments, it gives you endless work-saving opportunities. Used by itself or in combination with bigger loaders, this mini track loader is a maxi work-saver.

MS500 Mini Skid Steer Loader Technical Data

Moving typeTrack or Wheel Type
Dimension (LxWxH)1760mm*1100mm*1295mm
Rated loading capacity520kg (including attachment)
Max. Reach1800mm
Tyre (Wheel Type)6.50-10
Pushing power8.2KN
Weight (without attachment)1050kgs
Hydraulic oil flow30L/min
Track oil flow46L/min
Oil tank capacity38L
Oil modeL-HL46
Gasoline oil capacity28L/min
Battery capacity45Ah

MS500 Dimensions

Engine Options:Optional both Gasoline or Diesel engine.

Engine ModelKohler CH752Yanmar 3TNV80FYanmar 3TNV76Changchai 3M78
Engine Power/Speed27HP/3600r/min18KW (24HP)Euro Stage IIIEuro Stage V
Emission StandardEPA Tier 4EPA Tier 4 / Euro 525.4HP/3200r/min24HP/2800r/min
Engine TypeGasoline, 2 cylinders, Air CooledDiesel, 3 cylinders, Water CooledDiesel, 3 cylinders, Water Cooled

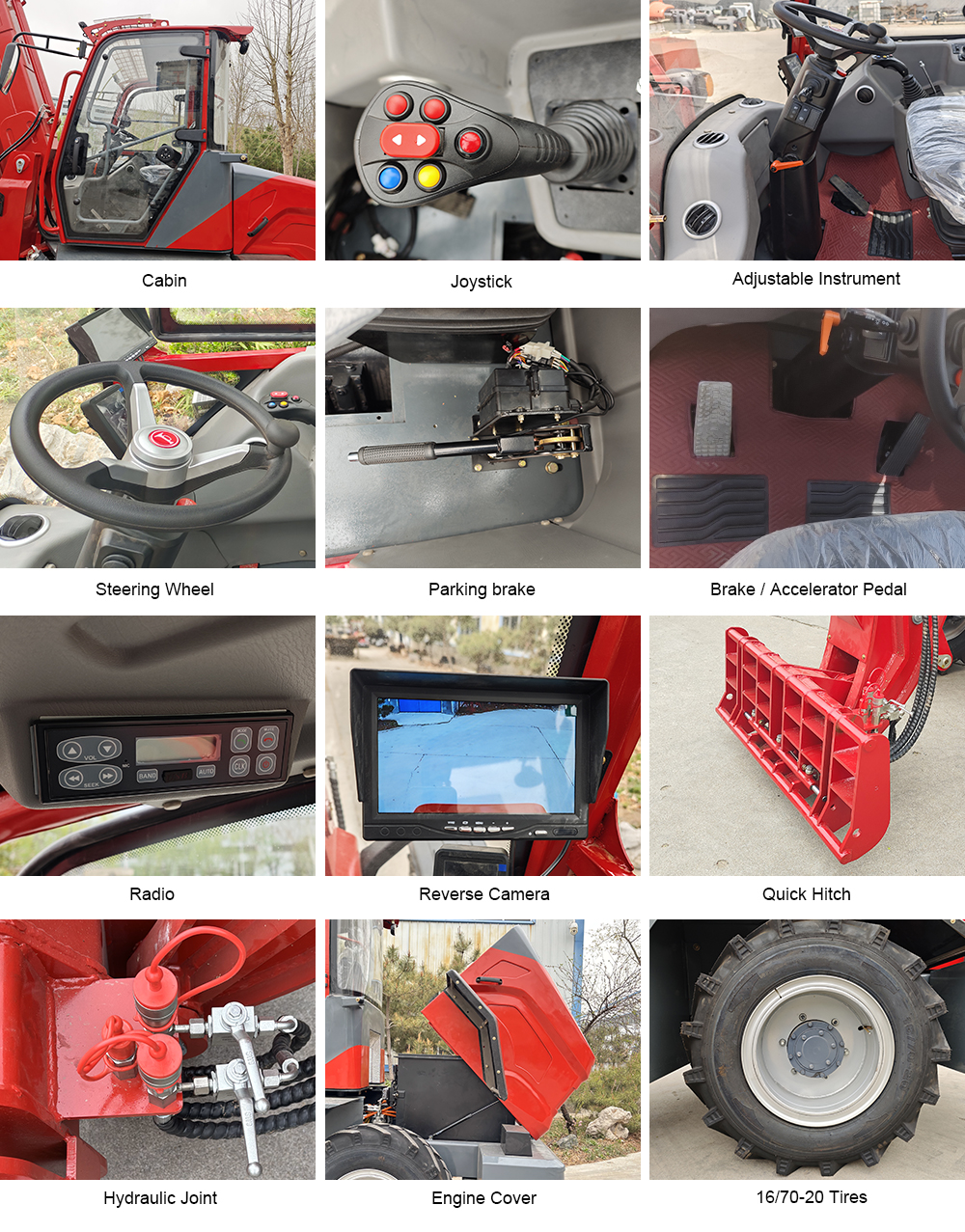

Main components:

Packing & Loading

PAREMETER:MS500 Technical Specifications.docx
