With its charming design, intuitive controls and current safety systems, DY840 is the evolution of DY620 and it is a machine that is essential for landscaping and construction professionals, innovative for agriculture and breeding and a real investment for municipalities and for medium–small enterprises.

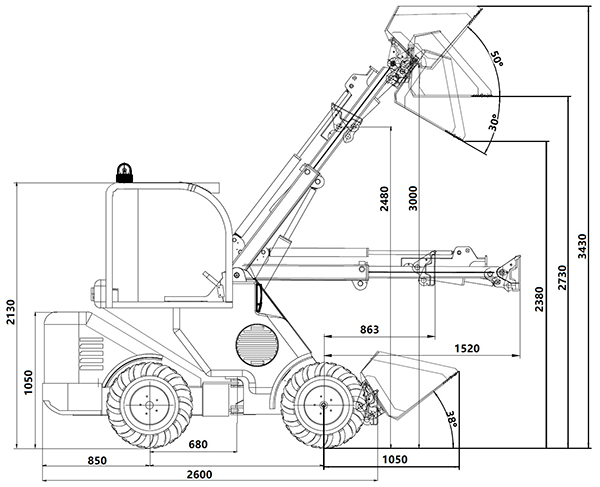

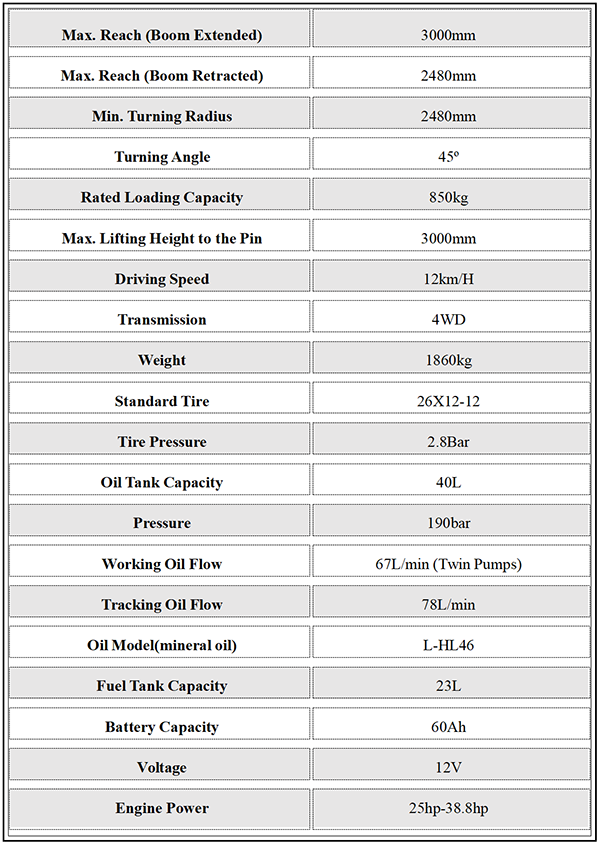

DY840 Technical Data
Model | DY840 |
Dimension (LxWxH) | 2600 X1240 X 2230mm |
Max. reach(boom extended) | 3000mm |
Max. reach(boom retracted) | 2480mm |
Bucket capacity | 450L |
Rated loading capacity | 850kg |
Tipping load | 1300kg |

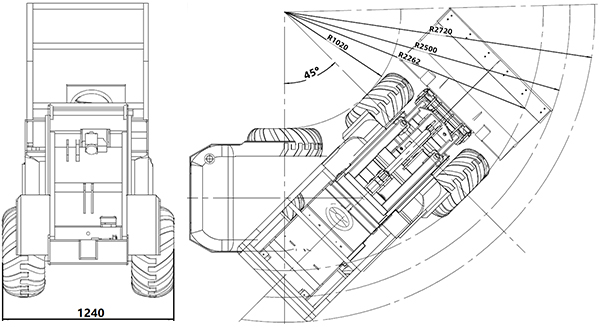

Min. turning radius | 2065mm |
Turning angle | 45 Degree |
Speed | 0-12 km/h |
Weight | 1860kg |
Standard tire | 26X12-12 |
Tire pressure | 2.8 bar |
Oil tank capacity | 40L |
Pressure | 190bar |
Working oil flow | 33.5L/minx2 |
Tracking oil flow | 78L/min |
Oil model(mineral oil) | L-HL46 |
Fuel tank capacity | 23L |
Battery | 60Ah, 12V |

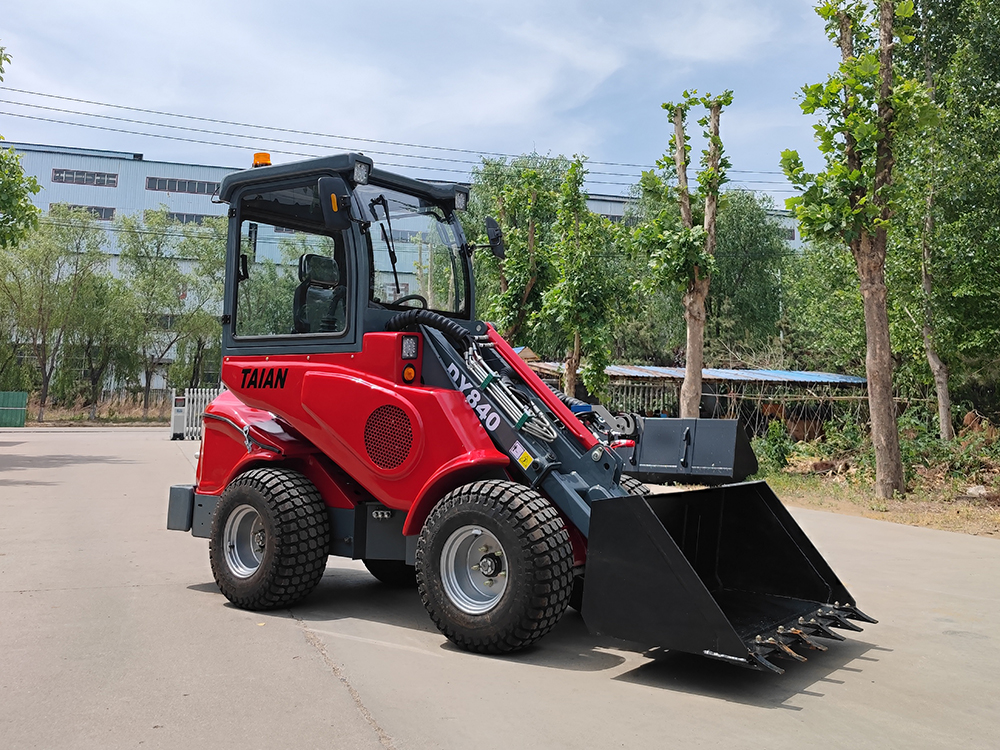

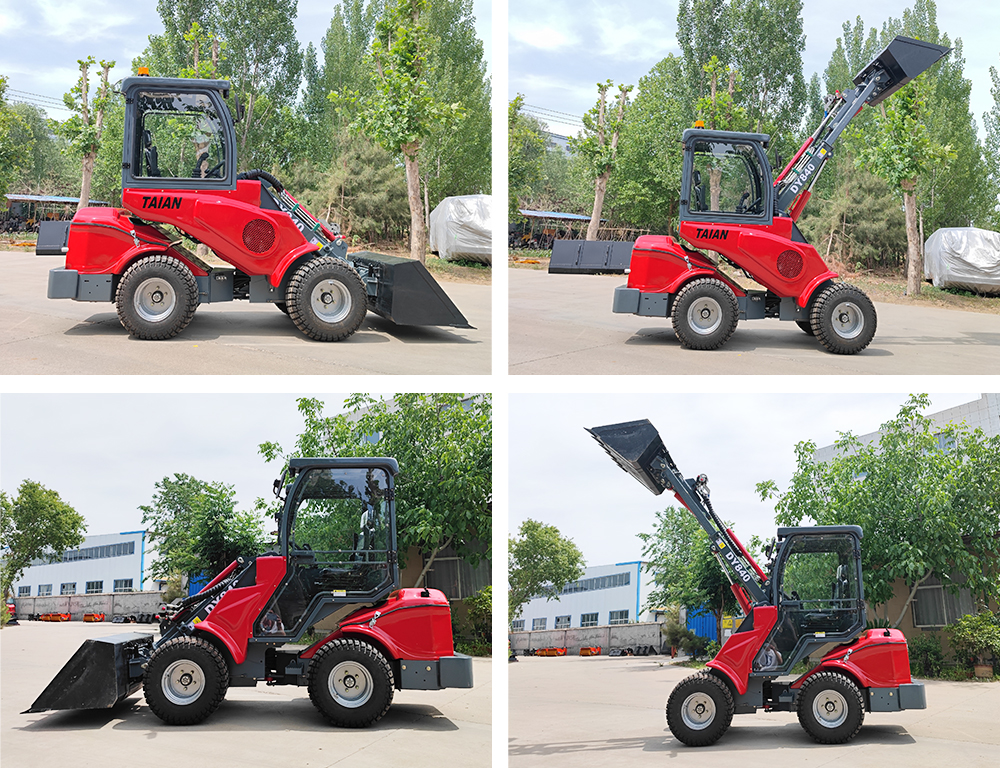

DY840 Small Telescopic Wheel Loader-UNBEATABLE POWER - PRICE RATIO
1.With Loading Capacity 850kgs-1000kgs;
2.Max. Lifting Height:3000mm;
3.Drive speed as high as 12km/h;
4.High-flow auxiliary hydraulics runs almost any attachment;
5.Great maneuverability – works in tight situations as well;
6.Telescopic boom as standard;
7.A/C System avaiable;
8.ROPS/FOPS cabin options:Collapsible Roll Bar, Steel Proof Canopy, and Closed cab with door.
Engine Options:Basic version of DY840 is equipped with Chinese Changchai engine. Optional with Yanmar or Kubota engines.
Changchai ZN390B | Yanmar 3TNV88 | Kubota V1505-E3B | Kubota V1505-E4B | Changchai ZN390BT |
Water Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
3 Cylinders | 3 Cylinders | 3 Cylinders | 3 Cylinders | 3 Cylinders |
28.5KW (38.7HP) | 26.9KW(36.5HP) | 24.1KW(32HP) | 18.5KW* | 18.5KW* |
2600r/p.min | 3000r/p.min | 2800r/p.min | 2300r/p.min | 2400r/p.min |
Chinese Stage II | EU stage III | EU stage III | EU V / EPA 4 | EU V |
117.2N.m/1820r | 107.8N.m/1320r | 93.9 N.m/ 1700r | 92.6N.m /1700r | 122.5N.m/1440r |

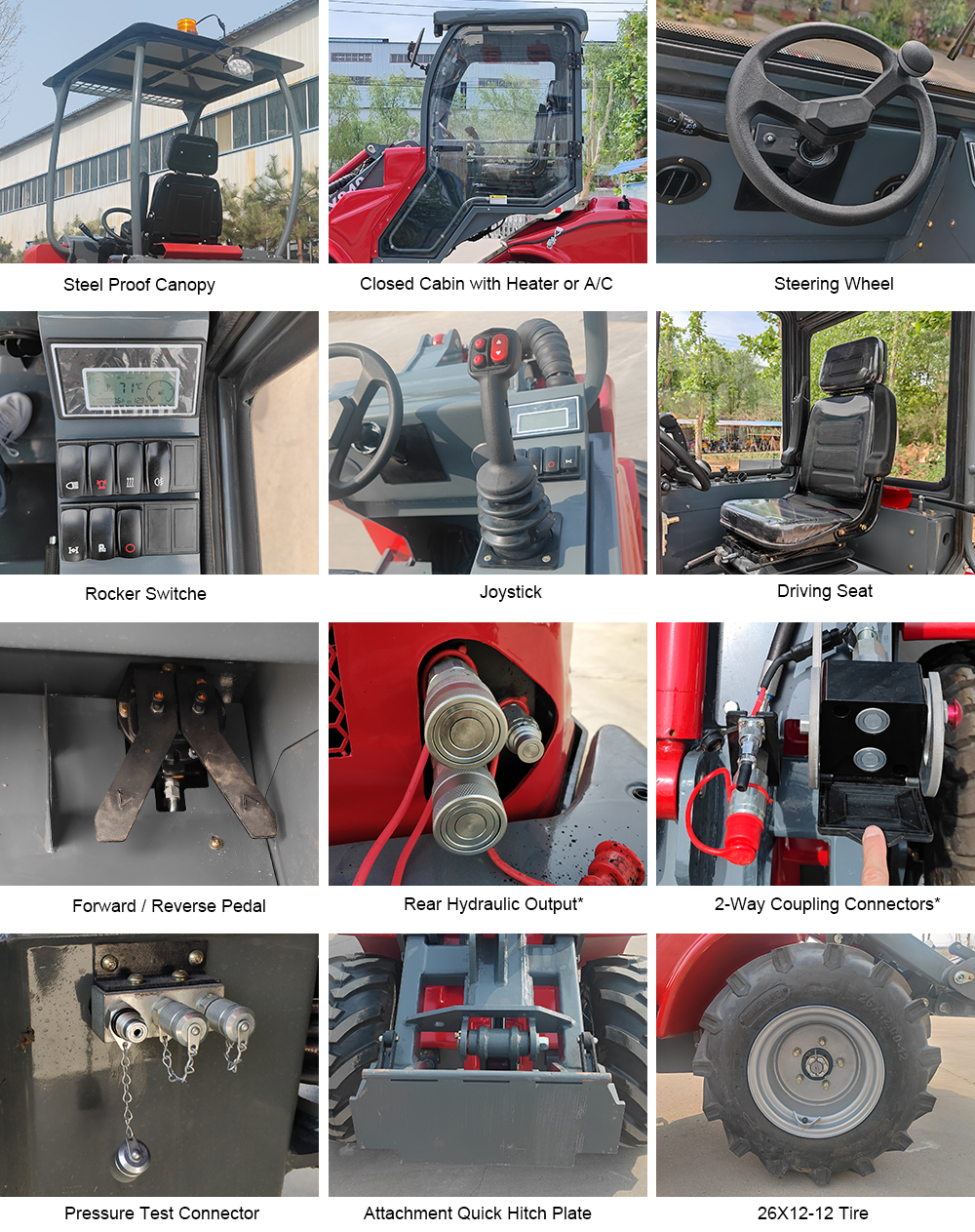

Main components:

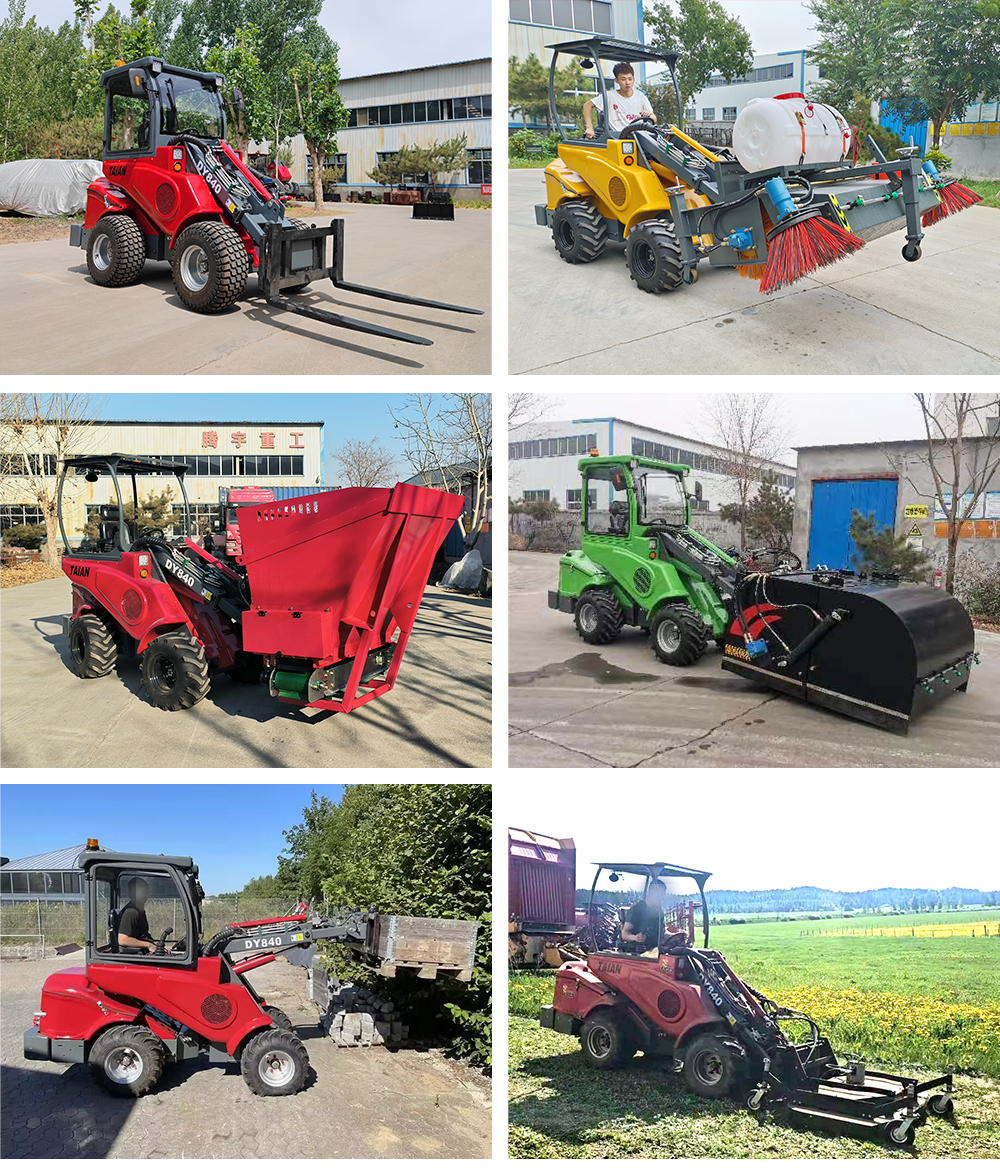

DY840 Options:
Packing & Loading
PAREMETER:DY840 Technical Specifications .docx
Taian Tengyu Heavy Industrial Co., Ltd(Which was called Taian Dongyue Carrying Machinery Co., Ltd before)has more than 10 years' experience with production of all kinds of loaders,and is the first one in China who starts to manufacture multifunctional telescopic wheel loaders in China…
